High PF luminous 982.5lm 9W AC LED Module

  • High PF luminous 982.5lm 9W AC LED Module
  • High PF luminous 982.5lm 9W AC LED Module
  • High PF luminous 982.5lm 9W AC LED Module
  • High PF luminous 982.5lm 9W AC LED Module

High PF luminous 982.5lm 9W AC LED Module

    Payment Type: L/C,T/T,D/P,Paypal
    Terms of Trade: FOB,CFR
    Min. Order: 200 Piece/Pieces
    Delivery Time: 7 Days
    Packaging: L185*W165*H46mm , Single gross weight: 46 g
    Productivity: 500
    Brand: isourceled
    Transportation: Ocean,Land,Air
    Place of Origin: shenzhen
    Supply Ability: 30000 pcs/month
    Certificate: CE, RoHS, FCC,CCC,PSE, ISO:9001
    Port: Shekou,Yantian

Basic Info

Model No.: ay0901

Product Description

High PF luminous 982.5lm 9W AC LED Module introduction: High PF luminous 982.5lm 9W AC LED Module process input current 0.062A, power: 9W, round shape, model: AY0901, High PF luminous 982.5lm 9W AC LED Module net weight 46 G, size: 113mm* 1.2mm, consisting of 84 lessons smd 2835 LED lamp beads, life can reach more than 30,000 hours, positive white light (PW) 5000-6500K, no flash screen, anti-static, 3 years replacement, luminous flux 987 lm, luminous efficiency 104.2 lm / w High PF luminous 982.5lm 9W AC LED Module is a 1.25mm thick aluminum substrate for ceiling lamps, panel lights and floodlights.

High PF luminous 982.5lm 9W AC LED Modulevideo

High PF luminous 982.5lm 9W AC LED Module front

High PF luminous 982.5lm 9W AC LED Module front

Product Features of Aurora Light Board 9W White Light Ceiling Light Module:


1. High PF luminous 982.5lm 9W AC LED Module consists of 84 lessons LED lamp beads.


2. linear constant-current IC control, photoelectric integration, stable performance, reliable, long life.
3. Three-stage integrated circuit design, the power change rate is within ±5% when the input voltage fluctuates between 220-240vac;
Constant power over voltage current protection function.
4. Overtemperature protection function, IC will automatically reduce the output current to control the temperature rise of the substrate ,
when the substrate temperature is too high.
5. High PF luminous 982.5lm 9W AC LED Module Using PCT2835 patch LED bead, color rendering index is more than 80.
6. There is no EMI, through the CCC, CE, EMC, LVD, SAA, UL, FCC, ROHS certification, etc.
7. No ultraviolet , electromagnetic wave radiation.
8. The size of 9W PCB board can be customized according to customer requirements.
9. No need to drive, wiring can be, 3 years replacement, full light, no flash screen.


Side of High PF luminous 982.5lm 9W AC LED Module

Side of High PF luminous 982.5lm 9W AC LED Module

Illumination diagram of High PF luminous 982.5lm 9W AC LED Module

Illumination diagram of High PF luminous 982.5lm 9W AC LED Module

Technical parameters of High PF luminous 982.5lm 9W AC LED Module:

Type

AY090011-2

luminous

990.5 lm

Input Voltage

AC220-240V 50HZ

luminous efficiency

110.3 lm/w

Input Current

0.072A

CCT

6521.3K

Power

8.9W

Ra

84.2

Power Factor

0.563

Size

Round 113*1.2mm

Insulation Class

ACW>2KV

Weight

46 g

Operating tempeture

-20~45℃

Thermal Conductivity

1.0W/m.K

Application of 220V High lumen 9W white light ceiling module:



Can be perfectly applied to ceiling lamps, panel lights, mining lamps, street lamps, LED downlights, fluorescent lamps, projection lamps, etc.

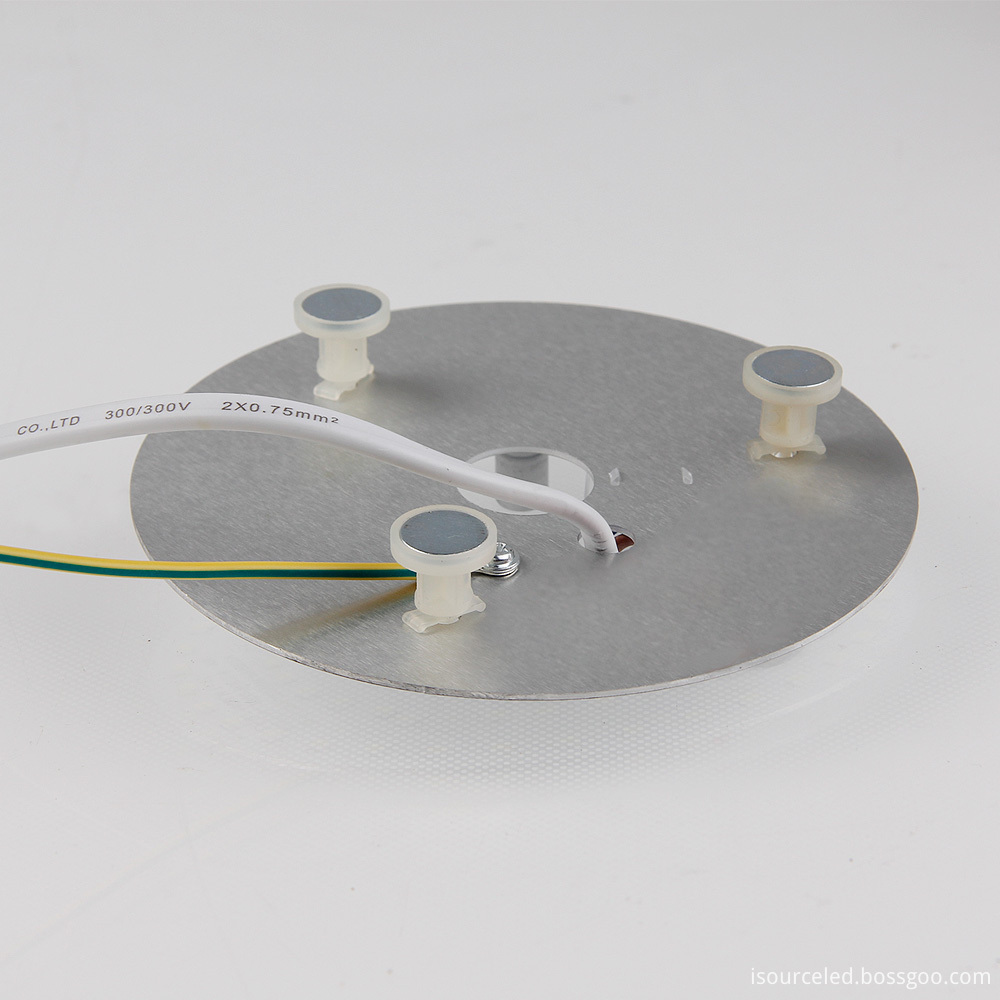

The opposite side of High PF luminous 982.5lm 9W AC LED Module


The opposite side of the High PF luminous 982.5lm 9W AC LED Module

High PF luminous 982.5lm 9W AC LED Module width

High PF luminous 982.5lm 9W AC LED Module width


Installation method of 9W white light ceiling module for 220V High lumen:


1. Clean the installation surface, evenly apply the heat-conducting silicone grease to the bottom of the LED module,
and fix the LED module and radiator with screws.
2. Attach the lens and screw it in place.
3. Ac 220V power supply is introduced for power test.
4. It is recommended to use an insulating gasket at the bottom of the screw.
